Naraku 70cc Performance Cylinder for LC Piaggio

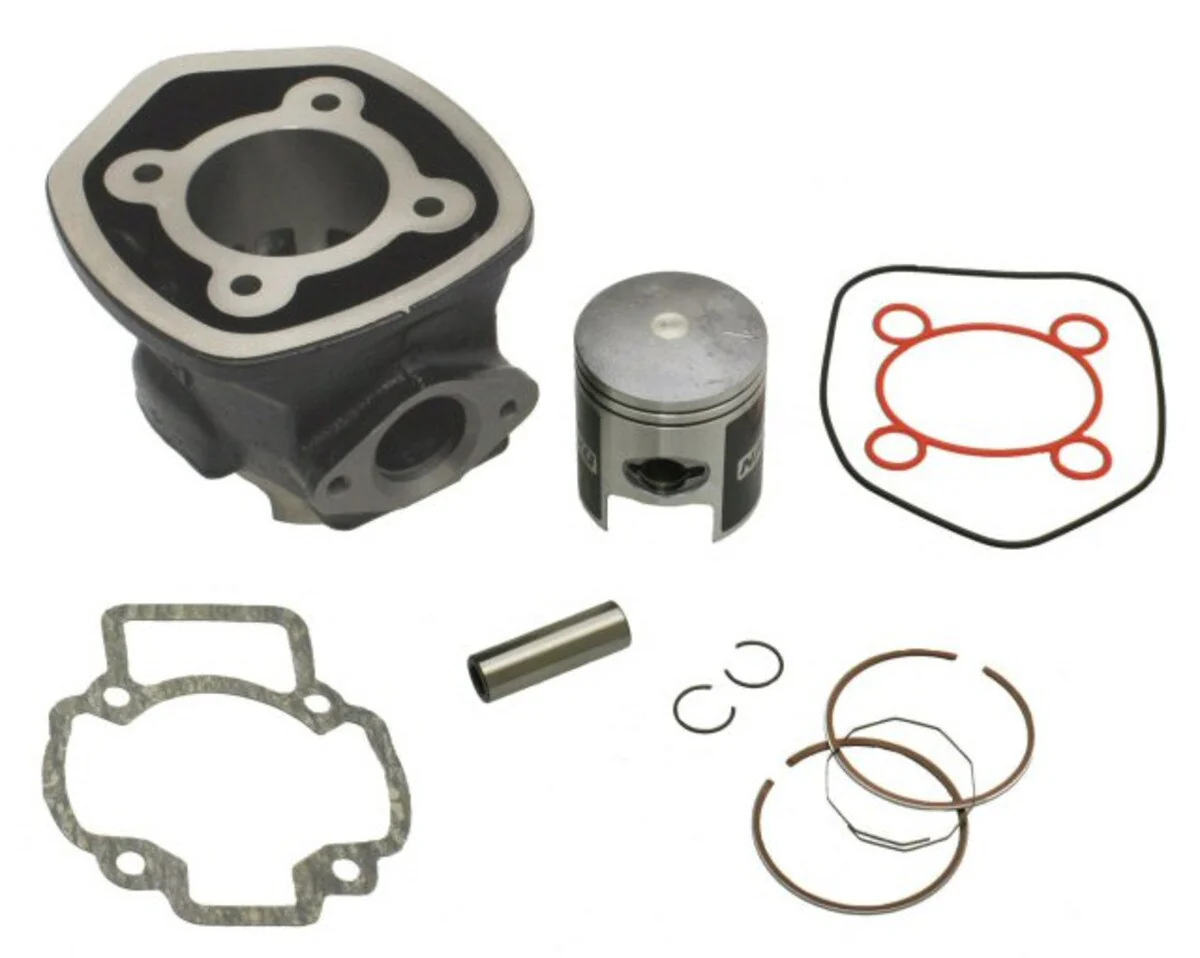

Naraku 70cc Liquid Cooled Pentagonal Piaggio Big Bore Cylinder Kit. Kit includes cylinder, low-friction molybdenum coated piston, rings, piston pin, cir clips, head gasket and base gasket.
When used in conjunction with a stock crankshaft the total displacement comes out to 70cc. Suitable for use with stock or performance exhaust.
Fits models with the Liquid Cooled Piaggio engine including:
- Aprilia SR50 (2003-13)
- Derbi Atlantis (2002+) and GP1 (thru 2001)
- Piaggio NRG (1998+) and Zip 2 (1996-02)
- Gilera DNA and Runner
*You may need to modify your engine case to accommodate the larger cylinder.
- Upgrades to 70cc
- Cylinder Bore: 47mm
- Cylinder Sleeve Outer Diameter: 52.15mm
- Wrist Pin Diameter: 12mm
- Total Piston Height: 54mm
More Images
Naraku 70cc Performance Cylinder for LC Piaggio
Naraku 70cc Liquid Cooled Pentagonal Piaggio Big Bore Cylinder Kit. Kit includes cylinder, low-friction molybdenum coated piston, rings, piston pin, cir clips, head gasket and base gasket.
When used in conjunction with a stock crankshaft the total displacement comes out to 70cc. Suitable for use with stock or performance exhaust.
Fits models with the Liquid Cooled Piaggio engine including:
- Aprilia SR50 (2003-13)
- Derbi Atlantis (2002+) and GP1 (thru 2001)
- Piaggio NRG (1998+) and Zip 2 (1996-02)
- Gilera DNA and Runner
*You may need to modify your engine case to accommodate the larger cylinder.
- Upgrades to 70cc
- Cylinder Bore: 47mm
- Cylinder Sleeve Outer Diameter: 52.15mm
- Wrist Pin Diameter: 12mm
- Total Piston Height: 54mm
