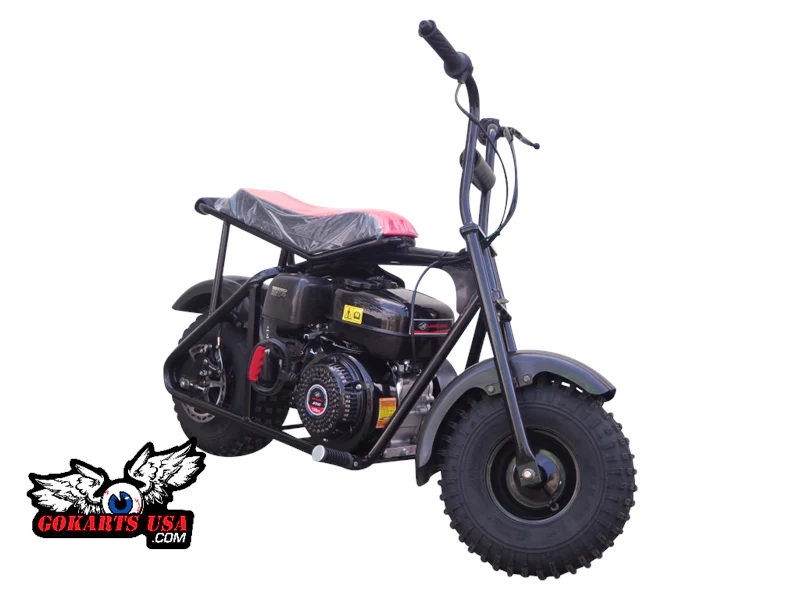

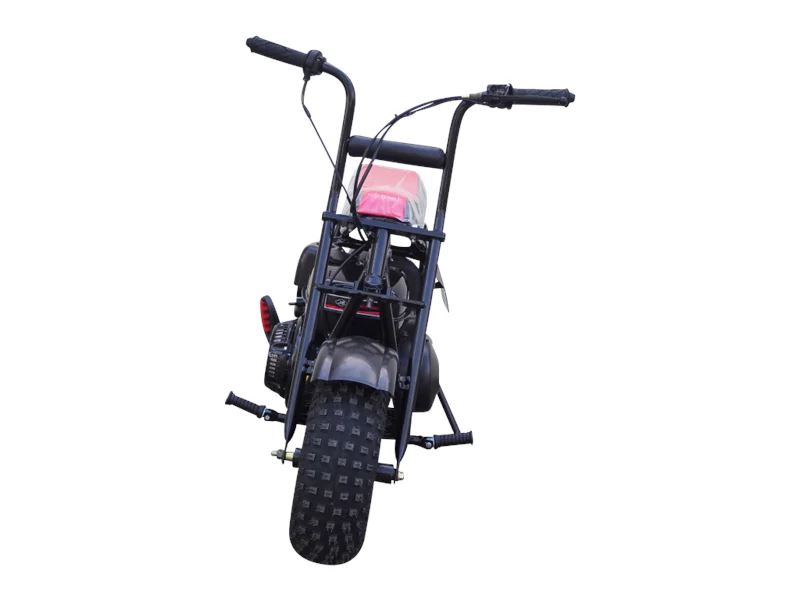

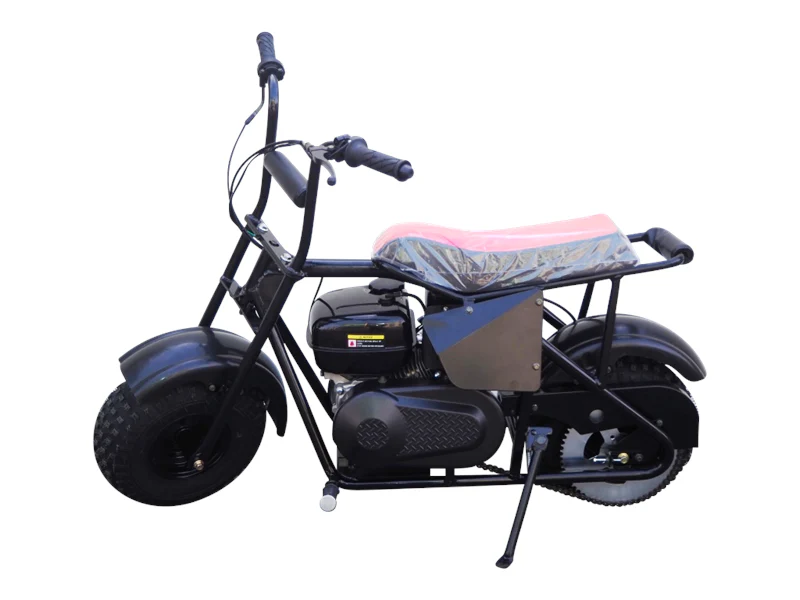

Storm (Motovox) 200 Minibike, 196cc 6.5hp, Disc Brake

196cc 6.5hp, GX200 compatible engine requires minimal maintenance.

Rear Disc Brake, a feature that sets it apart from other minibikes.

This model operates on a rear-wheel chain drive and offers endless entertainment for all ages. With over two decades of experience, TrailMaster continues to deliver exceptional products, including the retro-inspired Storm 200 minibike designed for longevity.

 Specifications

• Engine Displacement: 196cc 6.5 HP
• CARB Approved
• Starting: Recoil Cord
• Spark Plug Type: Torch - F7RTC
• Cooling: Air cooled
• Ignition Type T.C.I
• Cylinder head config.: OHV
• Number of Cylinders: Single
• Combustion Cycle: 4-stroke
• Bore and Stroke: 68 x 54mm
• Compression Ratio: 8.5:1
• Rated Power 7.7kw @ 3600rpm
• Rated Torque: 13.5Nm @ 2500rpm
• Idle Speed 1500 ± 100 rpm
• Top Speed 30-35mph
• Drive System Type: Chain Drive
• Gear Ratio: Centrifugal clutch
• Rear Brakes Mechanical Disc
• Tires: Front Tire Size AT145/70-6; Rear Tire Size AT145/70-6
• Fuel Gas Tank Capacity: 0.81gal.
• Fuel type Unleaded 87 octane or higher
• Oil Capacity .53qt. (.5L)
• Oil Type SAE 10W-40

Dimensions & Weights

• Length x Width x Height: 51.2” x 25.6”x 35.4”
• Seat Height: 25.2”
• Ground Clearance: 6”
• Vehicle Net Weight: 103lbs
• Weight Capacity: 250lbs
• Crate dimension: 53”x23”x18”
• Shipping Weight: 130lbs (With pallet: 170lbs)

*Seat color may vary
