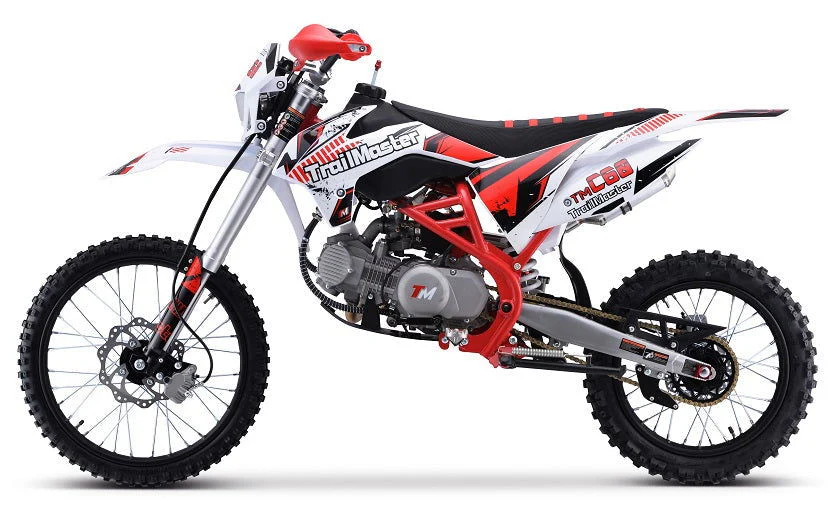

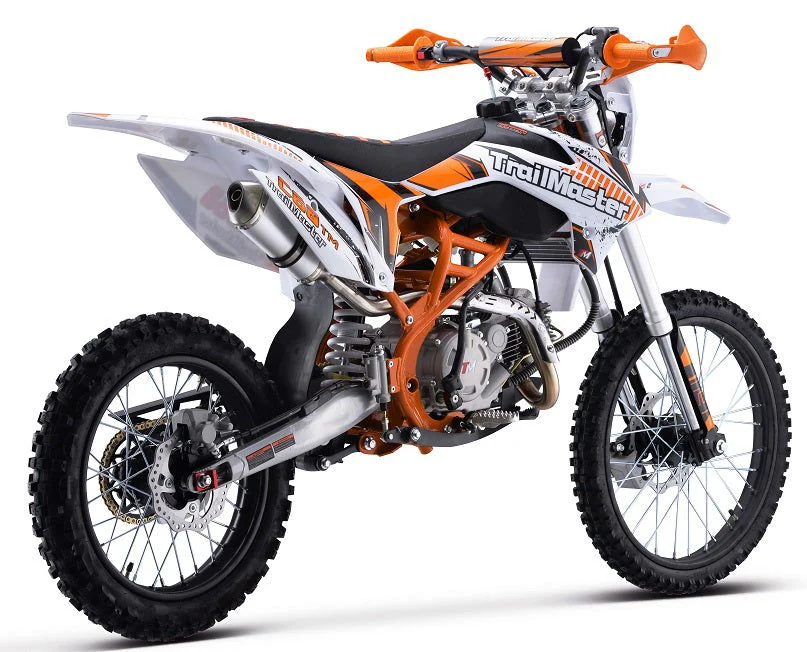

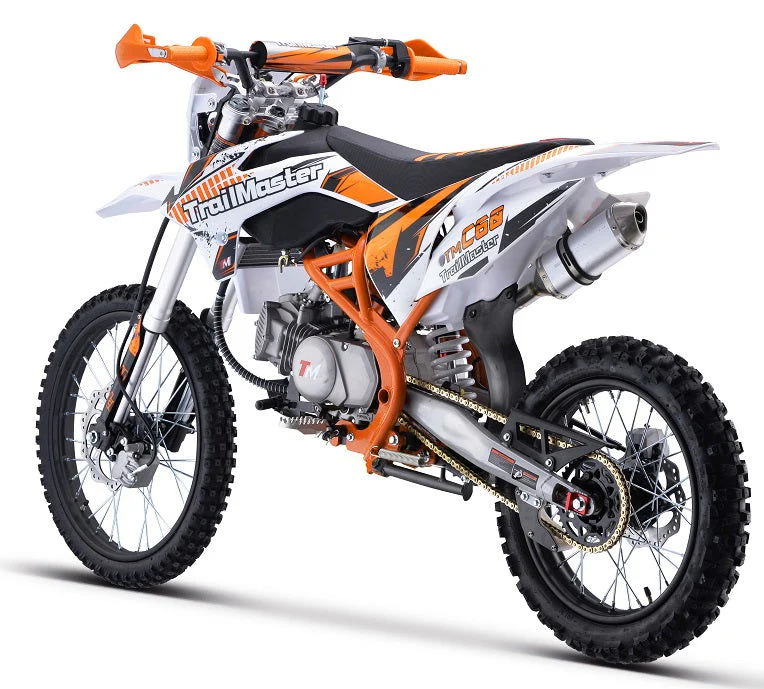

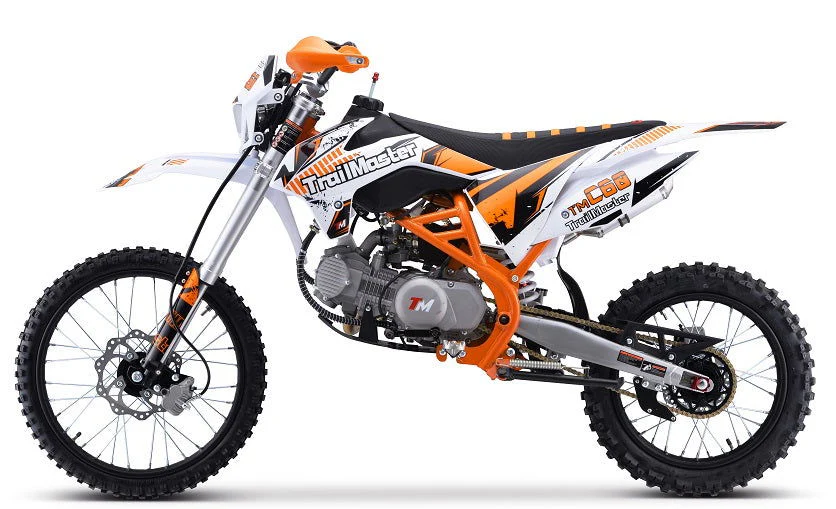

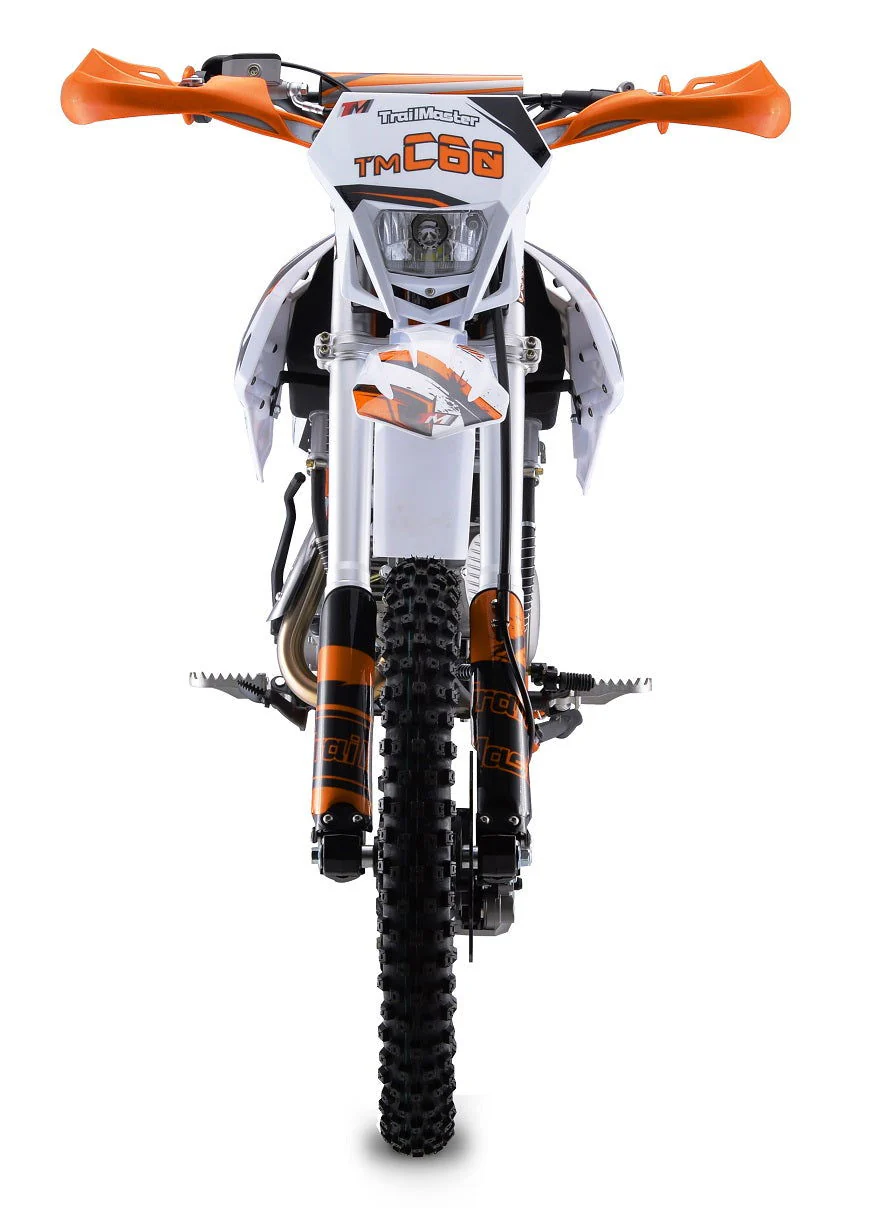

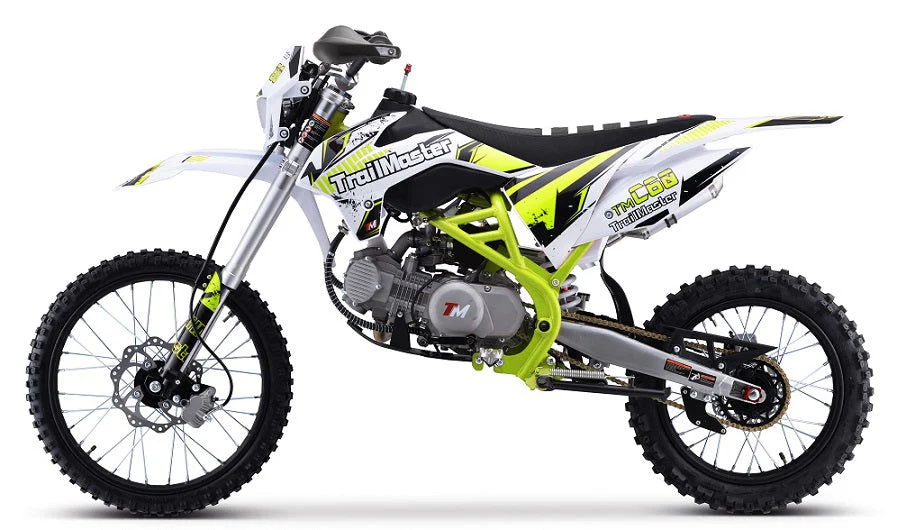

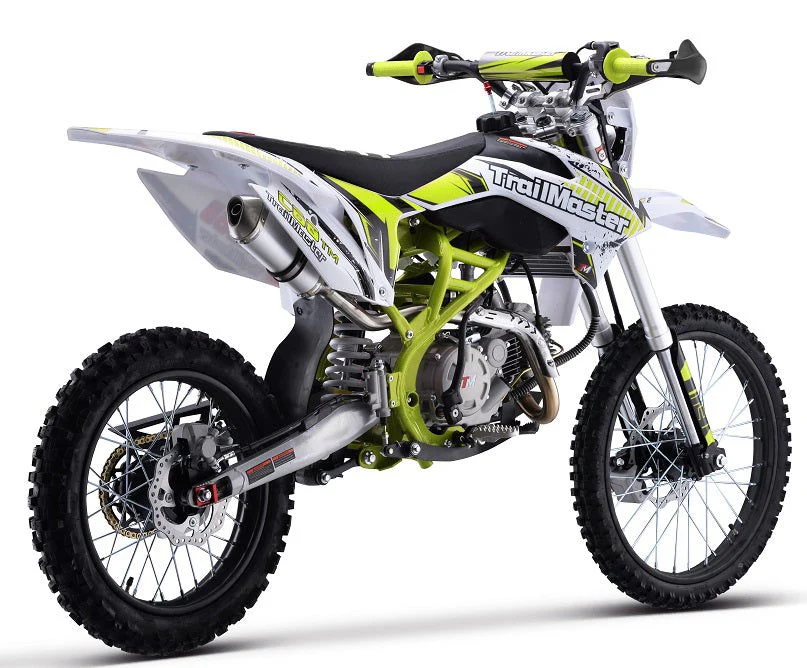

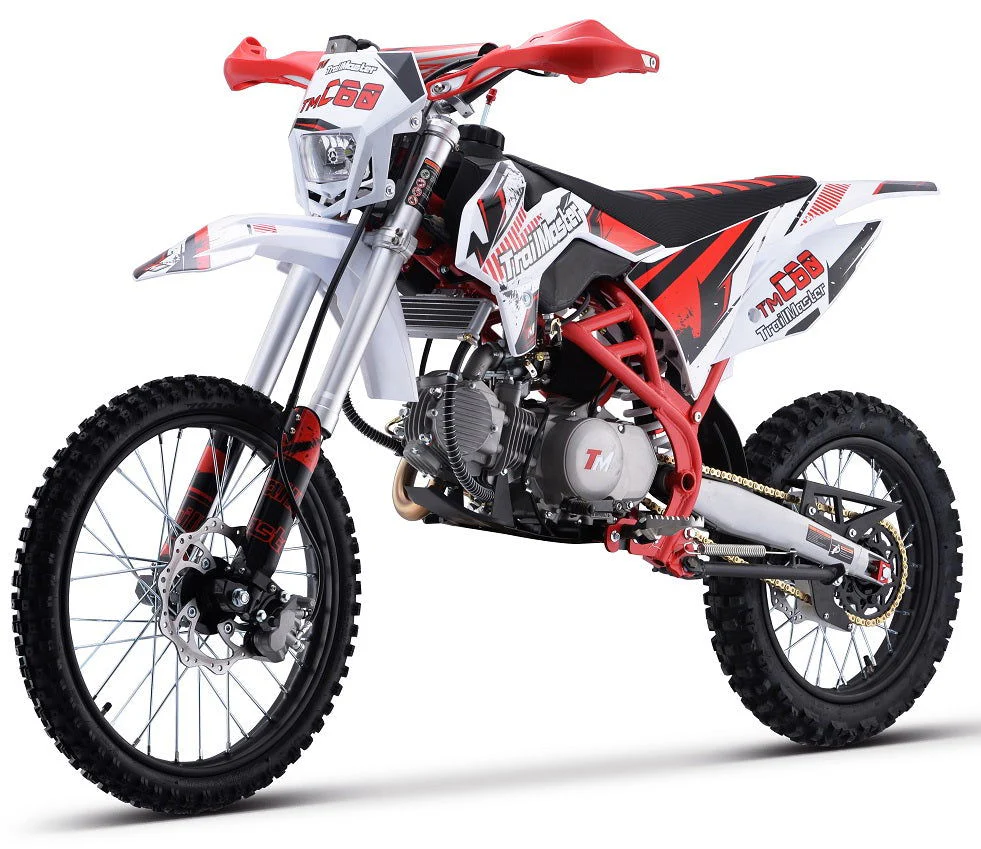

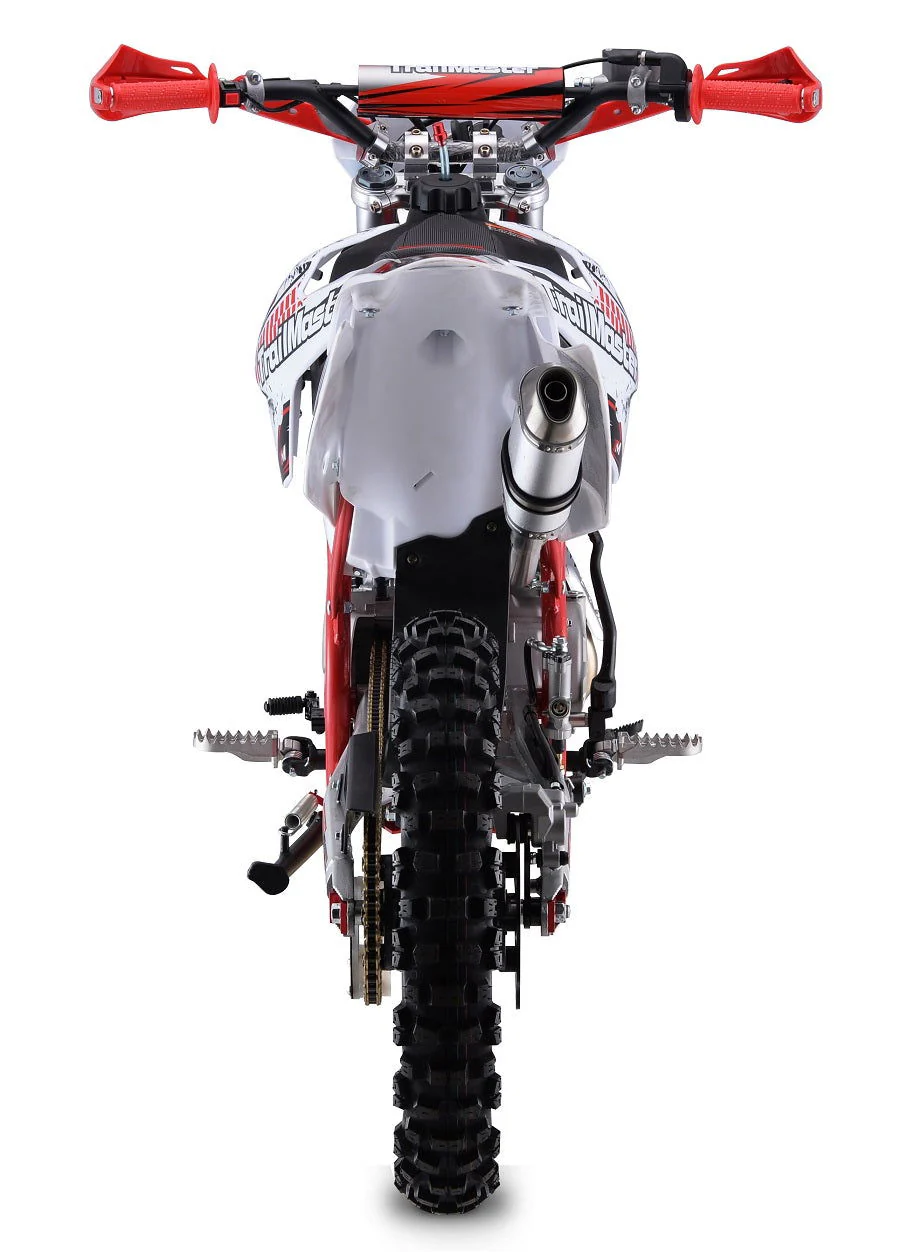

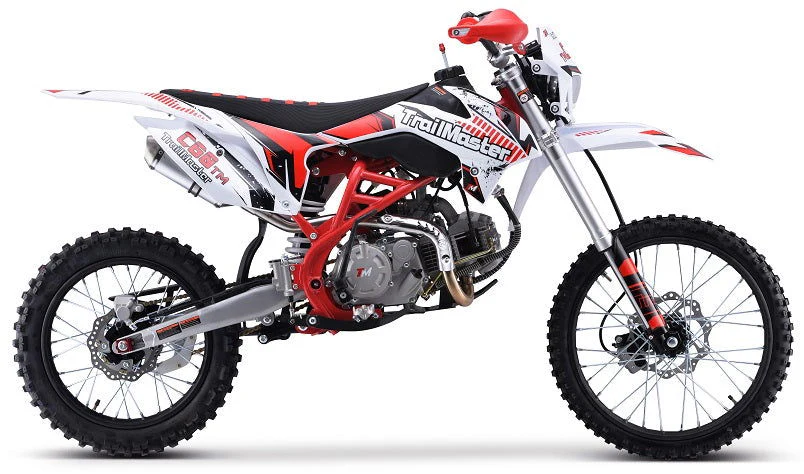

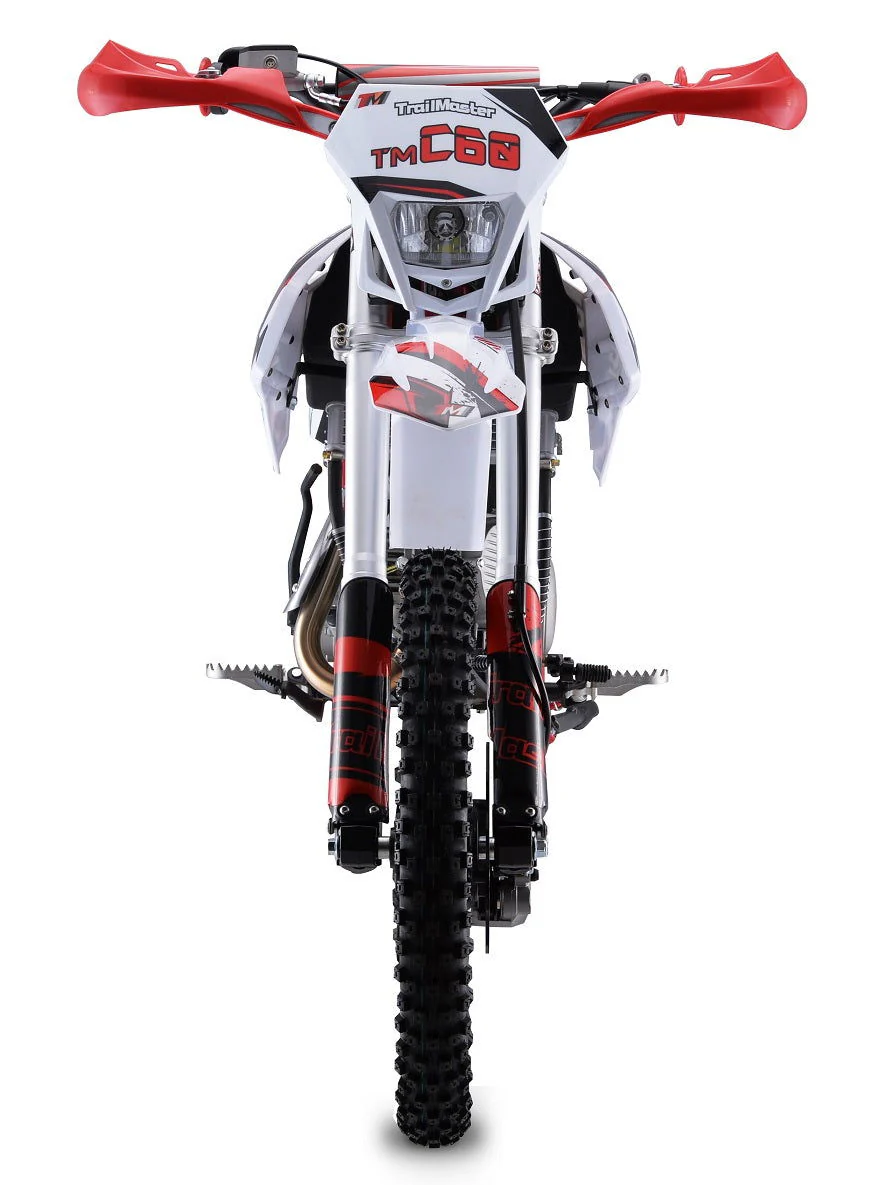

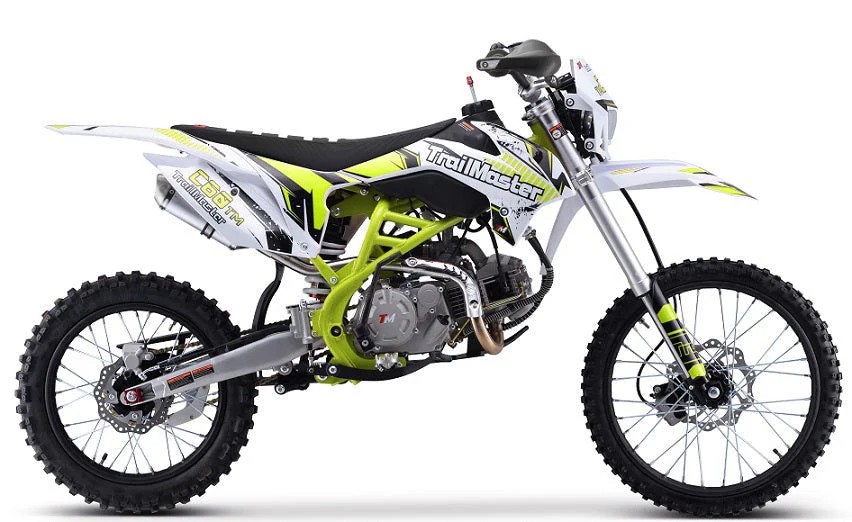

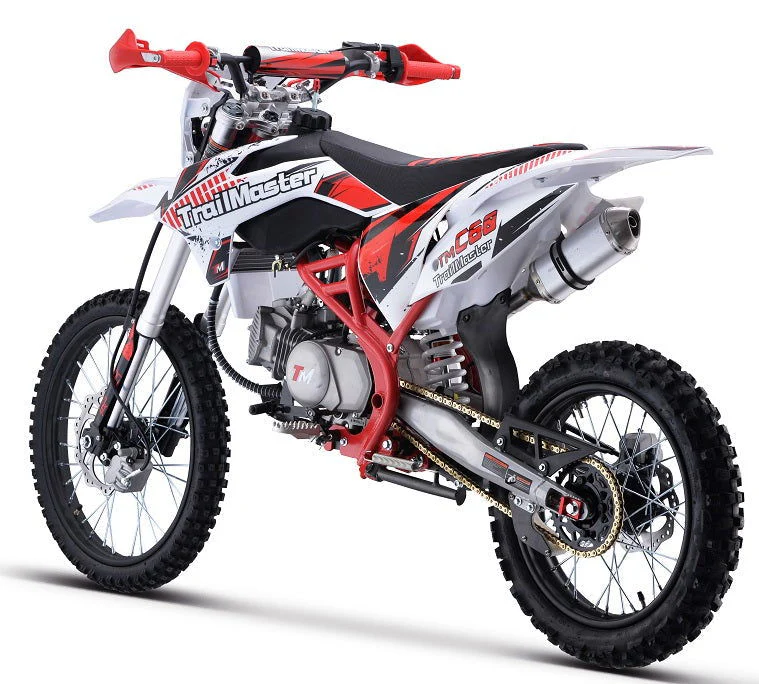

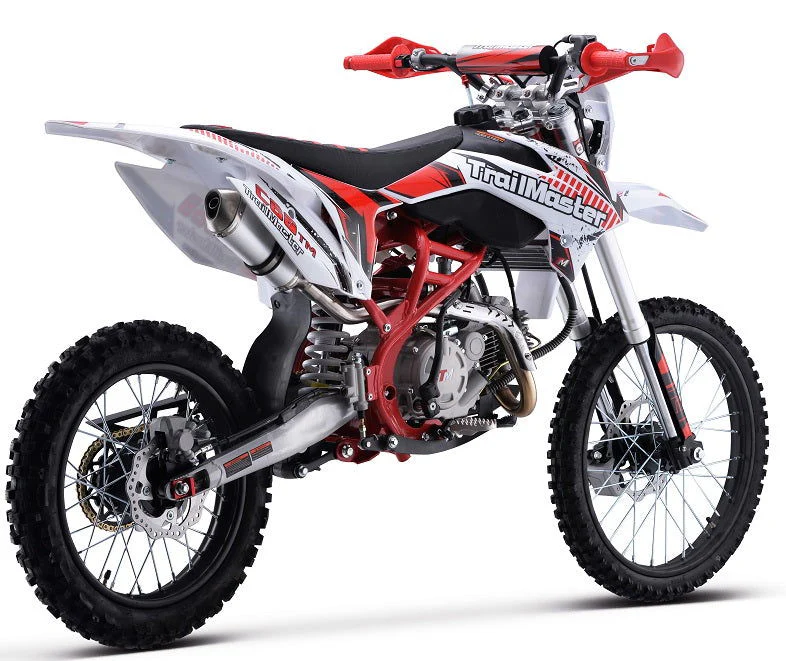

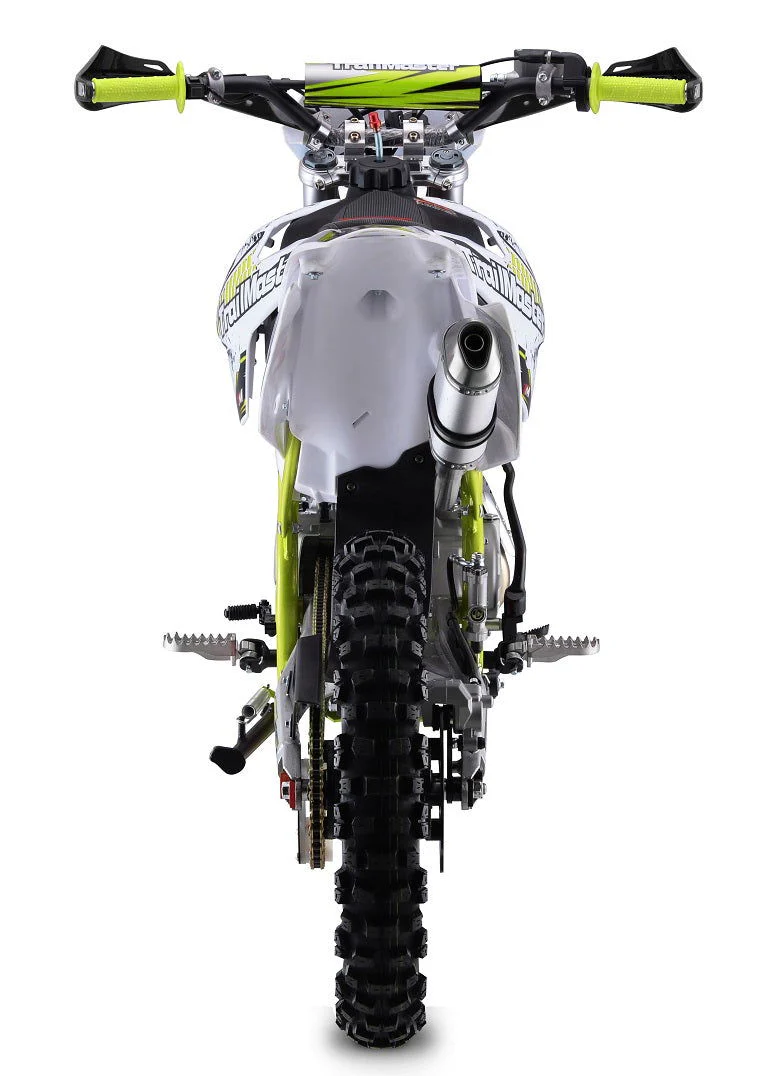

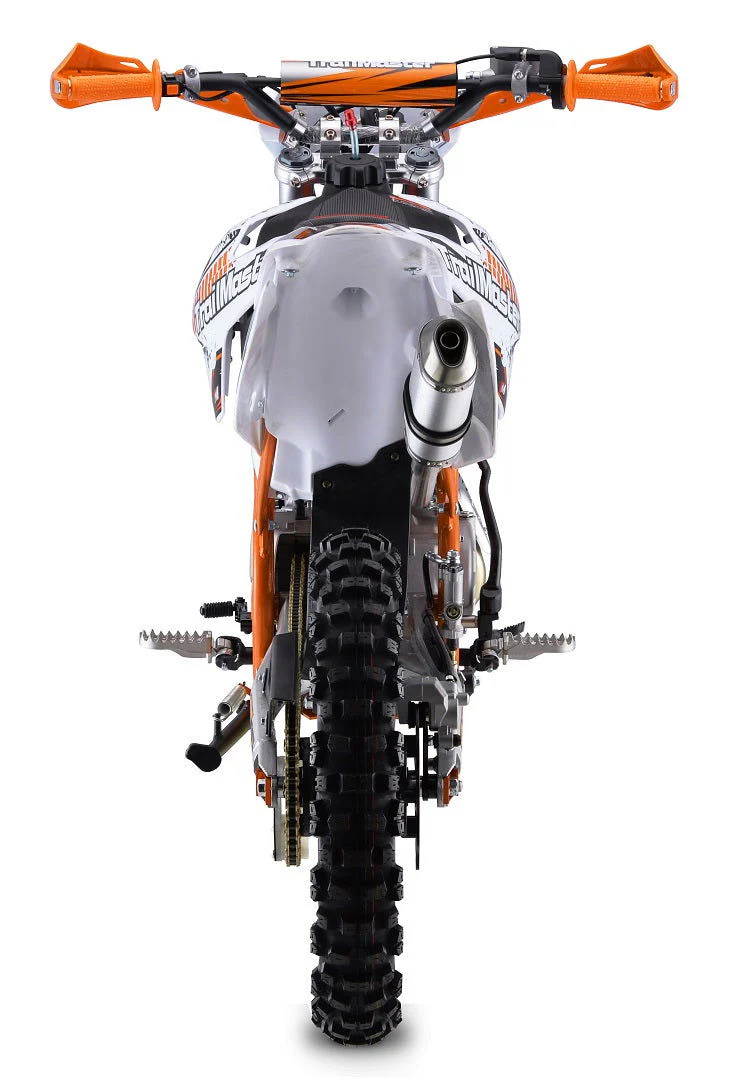

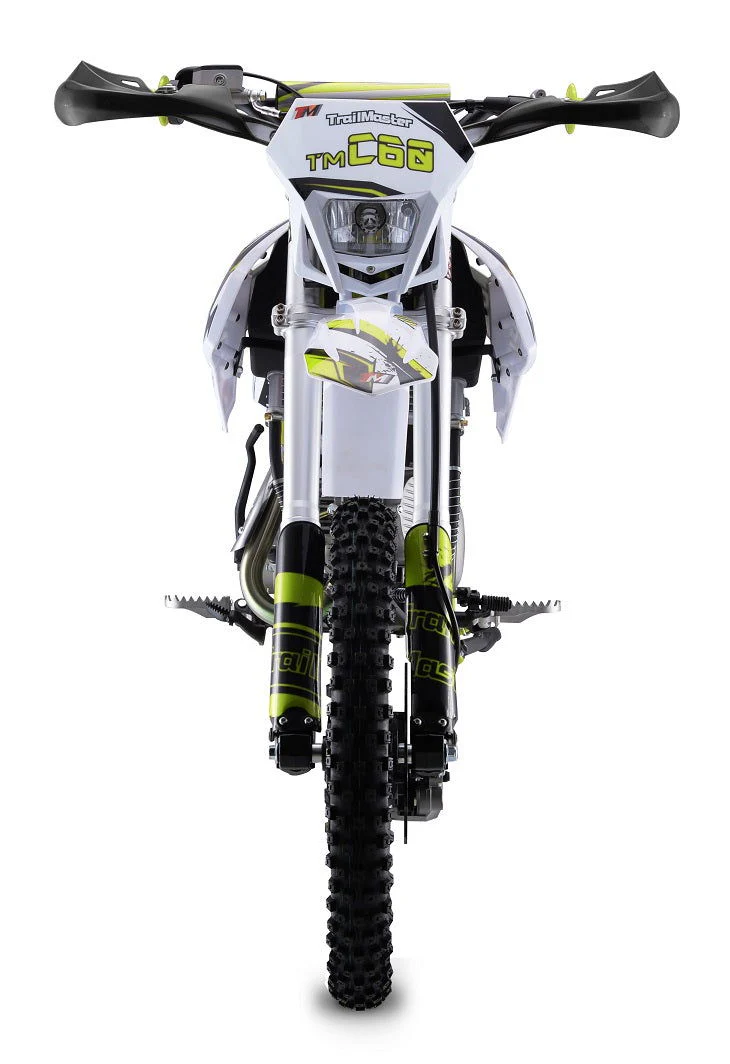

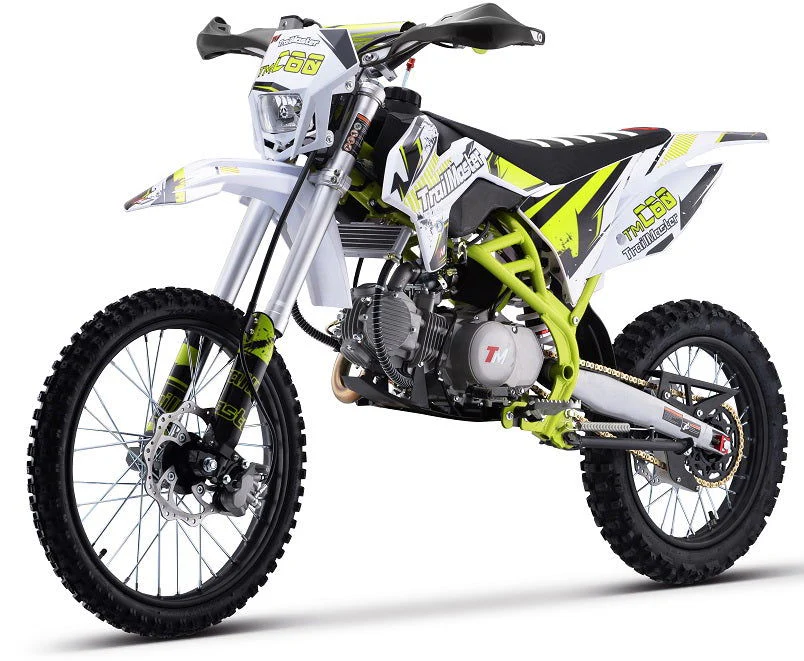

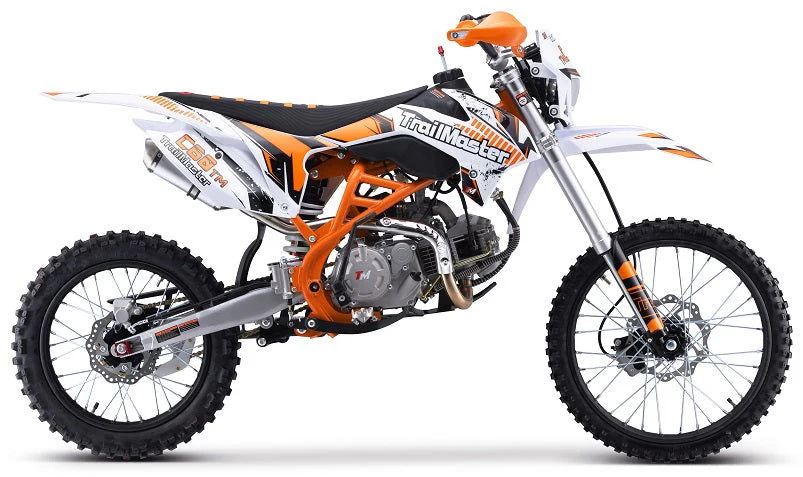

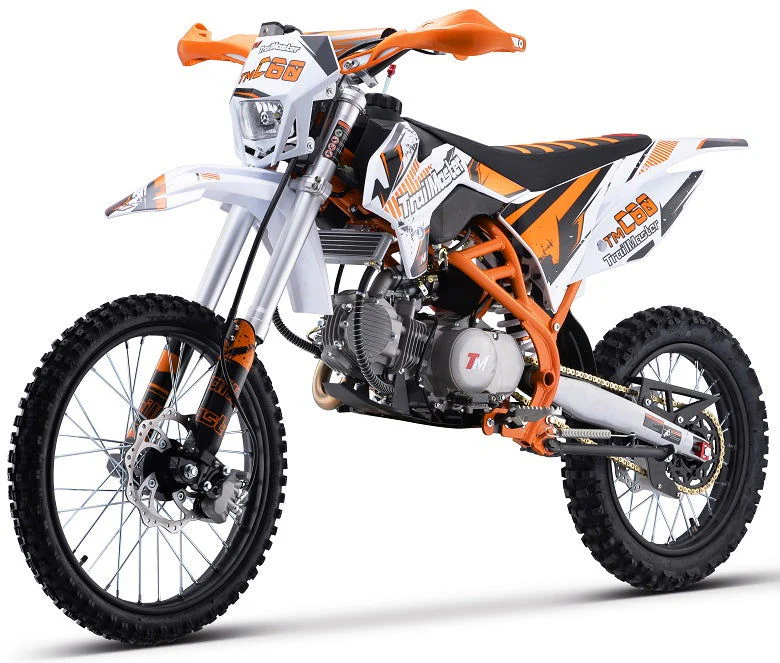

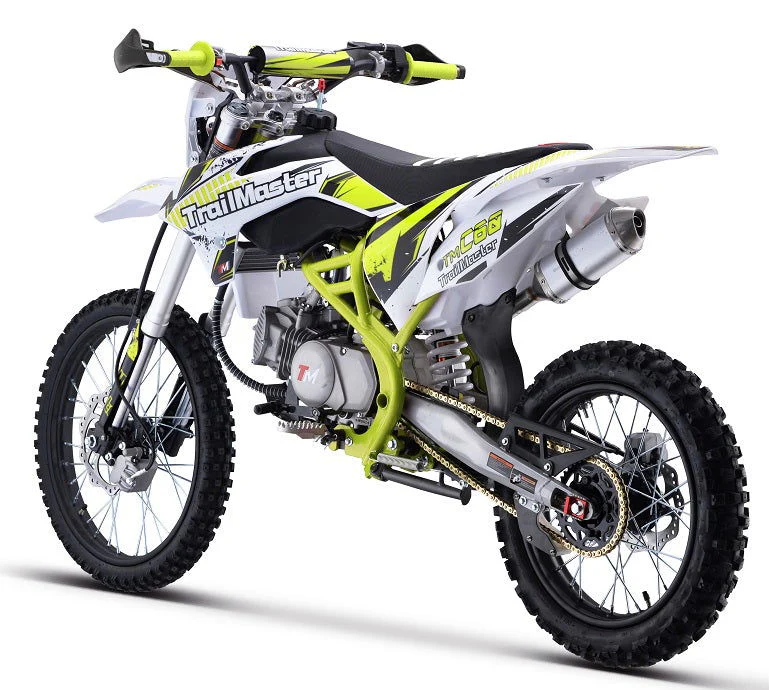

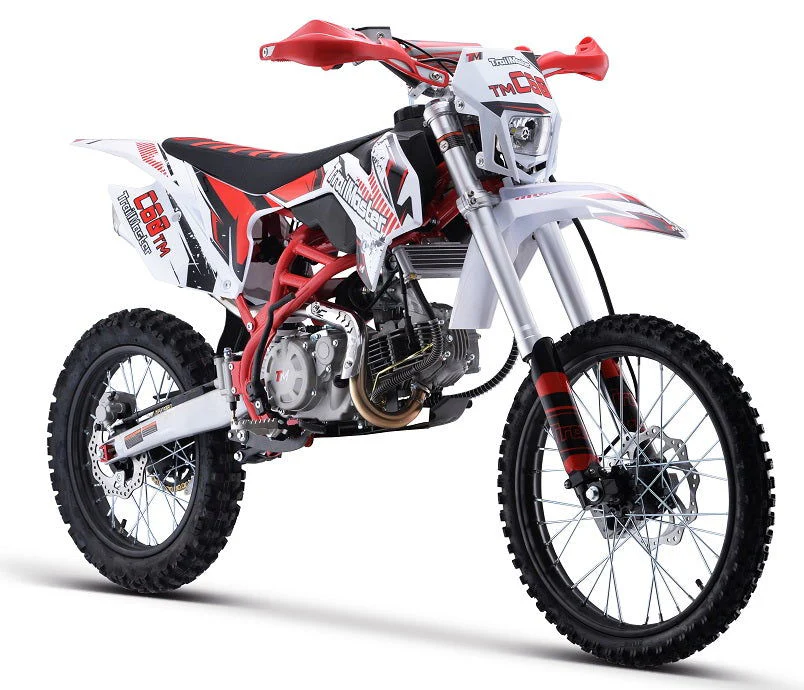

TrailMaster C60 160cc Dirt Bike, 4-Speed Manual (19/16) Wheels
The TM C60 is a great mid size dirt bike. It has a high performance 156cc 4 stroke 14hp engine with kick start and a top speed of around 55 MPH and a seat height of 34.6”. It is available in red, green, and orange colors. The TM C60 features a 4-speed manual transmission with front and rear disc brakes, and inverted front shocks!
The bikes full on motocross ergonomics and race suspension system make handling feel natural and unforced, and help it navigate over almost any type of terrain. Electronic CDI ignition makes kick starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 190 pounds, the 156cc engine can propel the motorcycle to speeds of 55 miles per hour.
Features:
- Powerful 160cc 4-stroke oil cooled engine
- Kick start
- 4-speed, manual clutch
- 53.3“ wheelbase and 34.6” seat height
- Front tire 19”/Rear Tire 16”
- Hydraulic front and rear disc brakes
- Aluminum handlebar
- LED Headlight
- Foldable Clutch & Brake Lever
Specifications
Engine System
- Engine Type ZM-Single Cylinder, 4-Stroke, Oil Cooling
- Displacement 156 ml
- Max Power 10.5 /8500（1±5%） kw/r/min
- Max Torque 11.5 /5500（1±5%） N.m/r/min
- Compression Ratio 11.5:1
- Bore and Stroke 60 x 55 (mm×mm)
- Shift Type N-1-2-3-4, Four-Gear Manual Shift
- Start Type Kick Start
- Ignition CDI
- Min. Fuel Consumption: ≤367g/kw.h
- Engine Oil #： SJ-5W/40
- Transmission Chain Drive; #428 & 120L Chain, 14/41T
Size Data
- Overall Size (L x W x H) 78.7"*28.9"*44.5"(2000*735*1130MM)
- Wheelbase 53.3" (1355MM)
- Seat Height 34.6" (880MM)
- Ground Clearance 13.4" (330MM)
- Fuel Capacity 7.5 L/2 Gal.
- Tires FT: 70/100-19 - RR: 90/100-16 Knobby tires
- Wheels Steel 1.6 x 19" / 1.85 x 16" Rims, Cast Hubs
Frame/Suspension/Brake System
- Frame Twin Girders Steel Tube Frame
- Front Fork Inverted 45*48-780mm Forks, Non-Adjustable
- Rear Shock ￠10*￠11*410mm, Spring Per-load
- Swing-Arm Steel Tube 14inch
- Handlebar Steel Crossbar ,L=720mm; Dia=22mm
- Front Brake Hydraulic Twin Piston Caliper, 220mm Disc
- Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust Steel Pipe with catalyst converter(EPA Standard)
- Brake & Clutch Lever Foldable
- Seat Ribbed TrailMaster Seat
- Headlight LED
- Packing and Loading
- Packing Size(inch) 66x16.3x31.3 inch
- N.W/LBS 190 LBS
- G.W/LBS 227 LBS
