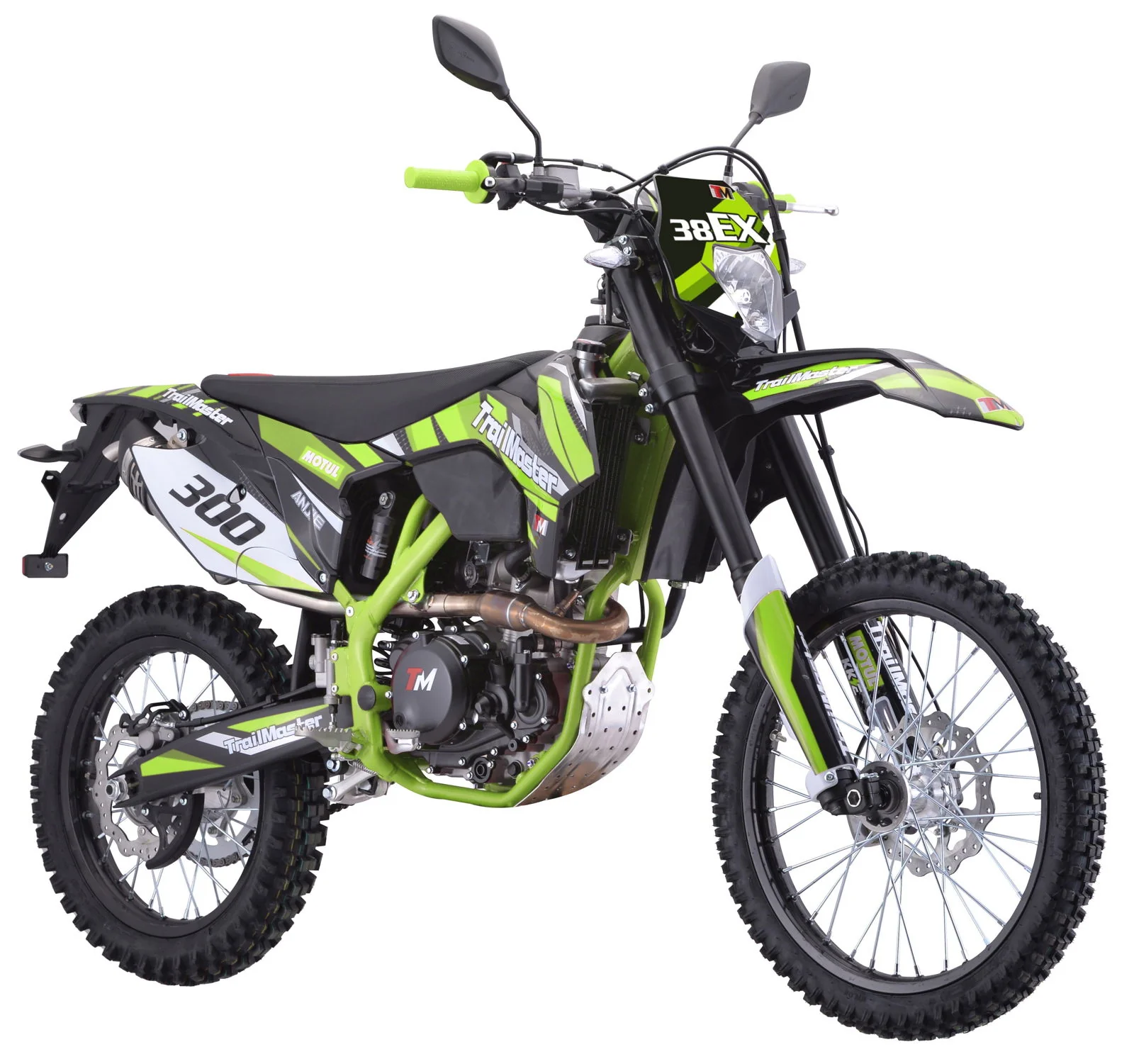

TrailMaster TM38EX 300 Dirtbike 31hp, 6-Speed Manual, Liquid Cooled, Fuel Injected

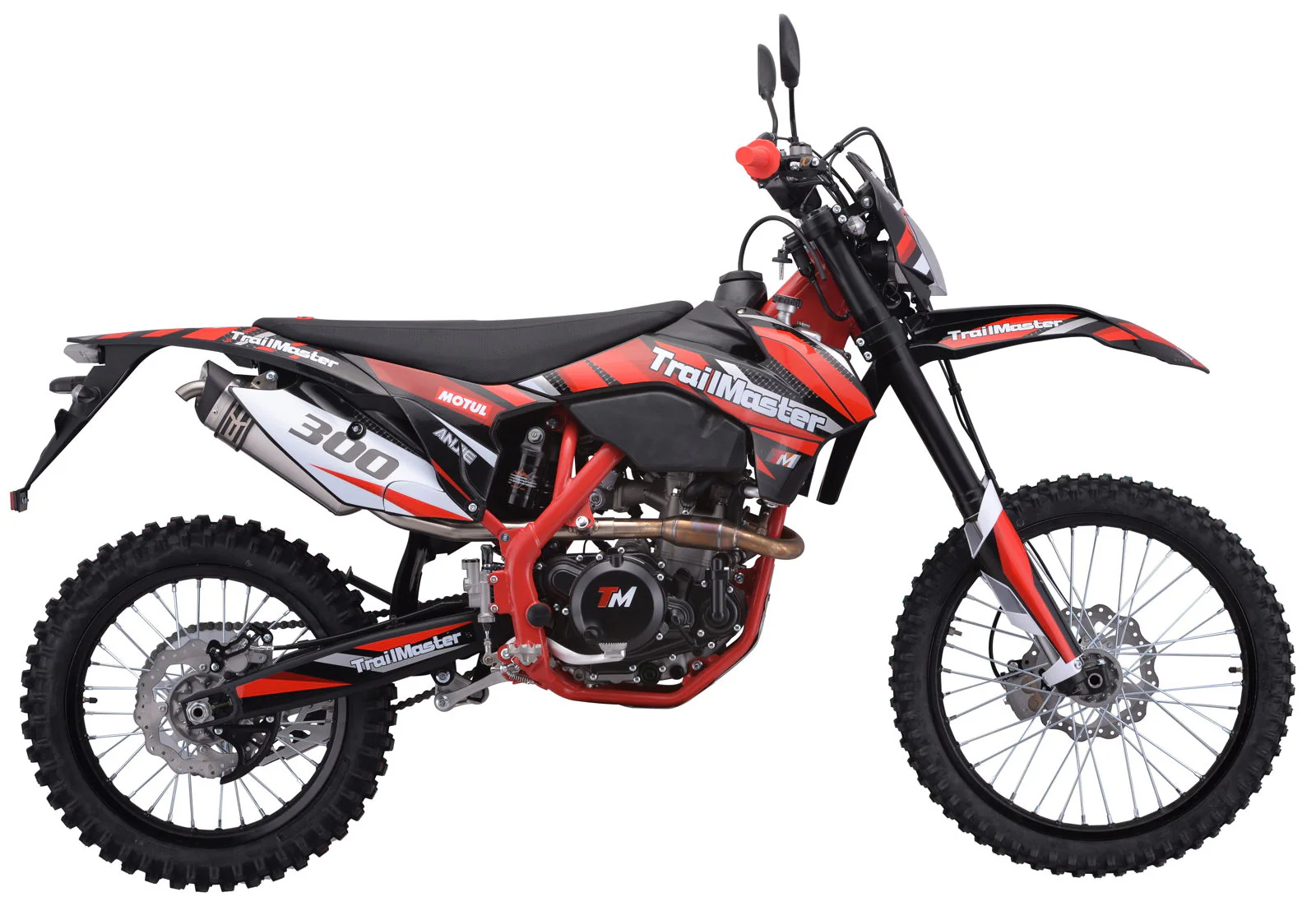

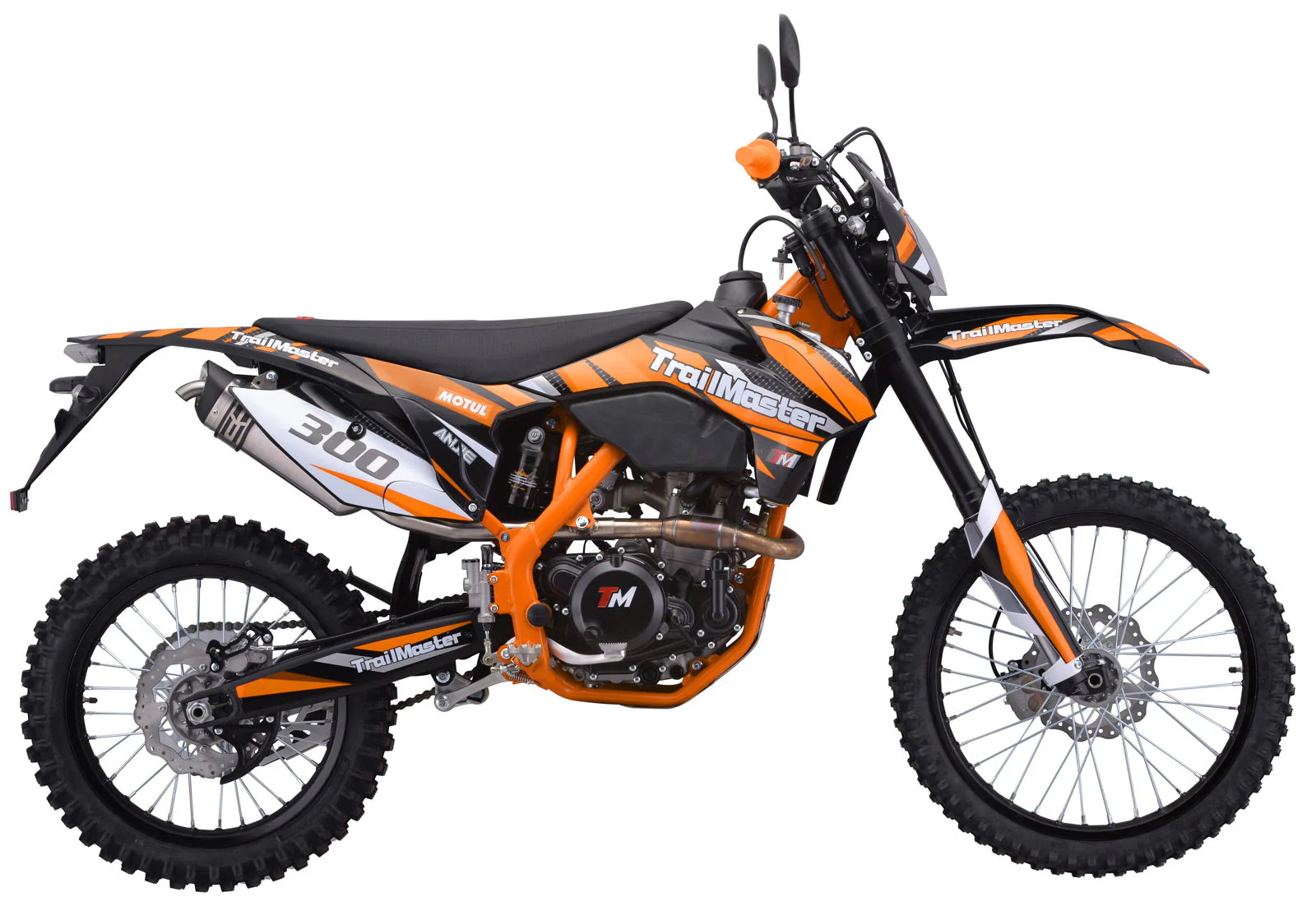

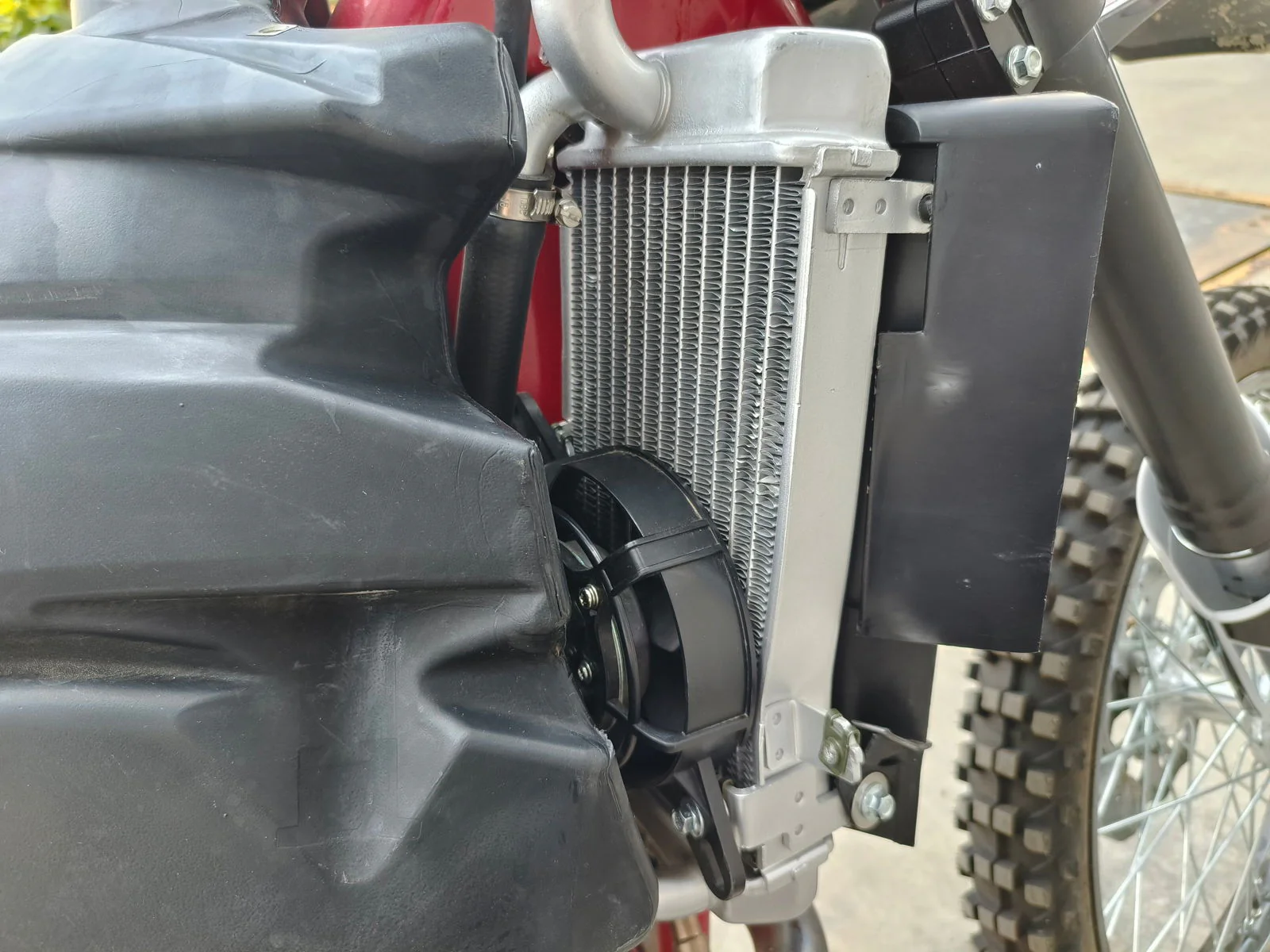

The TM 38EX‐300 (EFI) is Trailmaster’s first full size Fuel Injected Dual Sport Bike. It has a high performance electric start (only) liquid cooled 298cc 4 stroke 31hp engine with EFI – Electronic Fuel Injection with a top speed of more than 65 MPH and a seat height of 36.2”. It is available in red, green, and orange colors. The TM38EX features Rear View Mirrors, turn signals, license plate mount, digital dashboard, headlight, and horn to be able to drive on the road. It comes stock with a 6 speed manual transmission with front and rear disc brakes, inverted front shock, and a lightweight steel tube frame!
The bikes full on motocross ergonomics with a 21” front / 18” rear wheel and race suspension system, make handling feel natural and unforced, and help it navigate over almost any type of offroad terrain or city road. Electronic Digital CDI ignition makes key starting effortless, keeps the bike running smoothly in all gears and provides a broad, even power band. And at only 242 pounds, the 298cc engine can propel the motorcycle to speeds of more than 65 miles per hour.

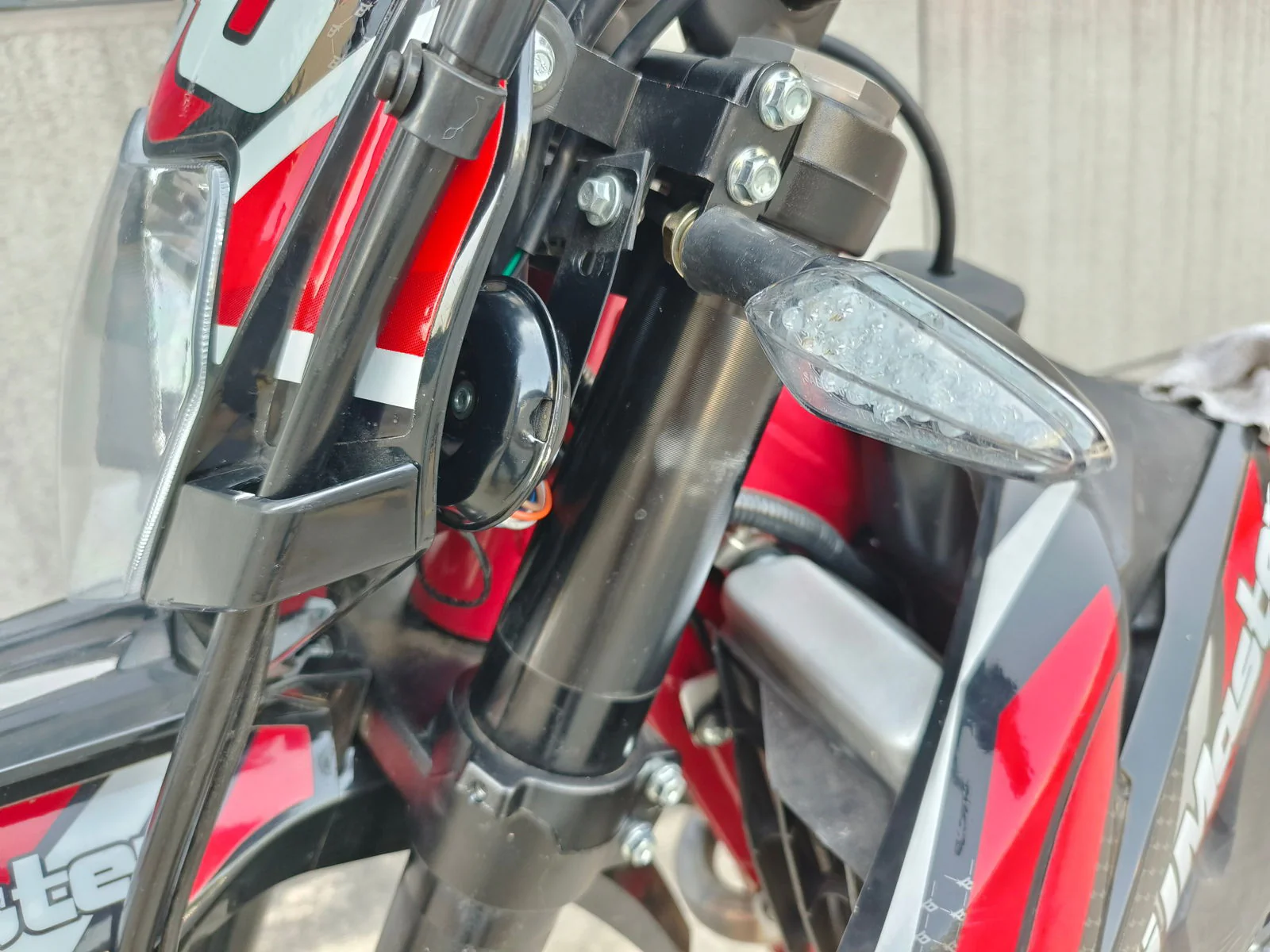

- Turn signals and rear view mirrors

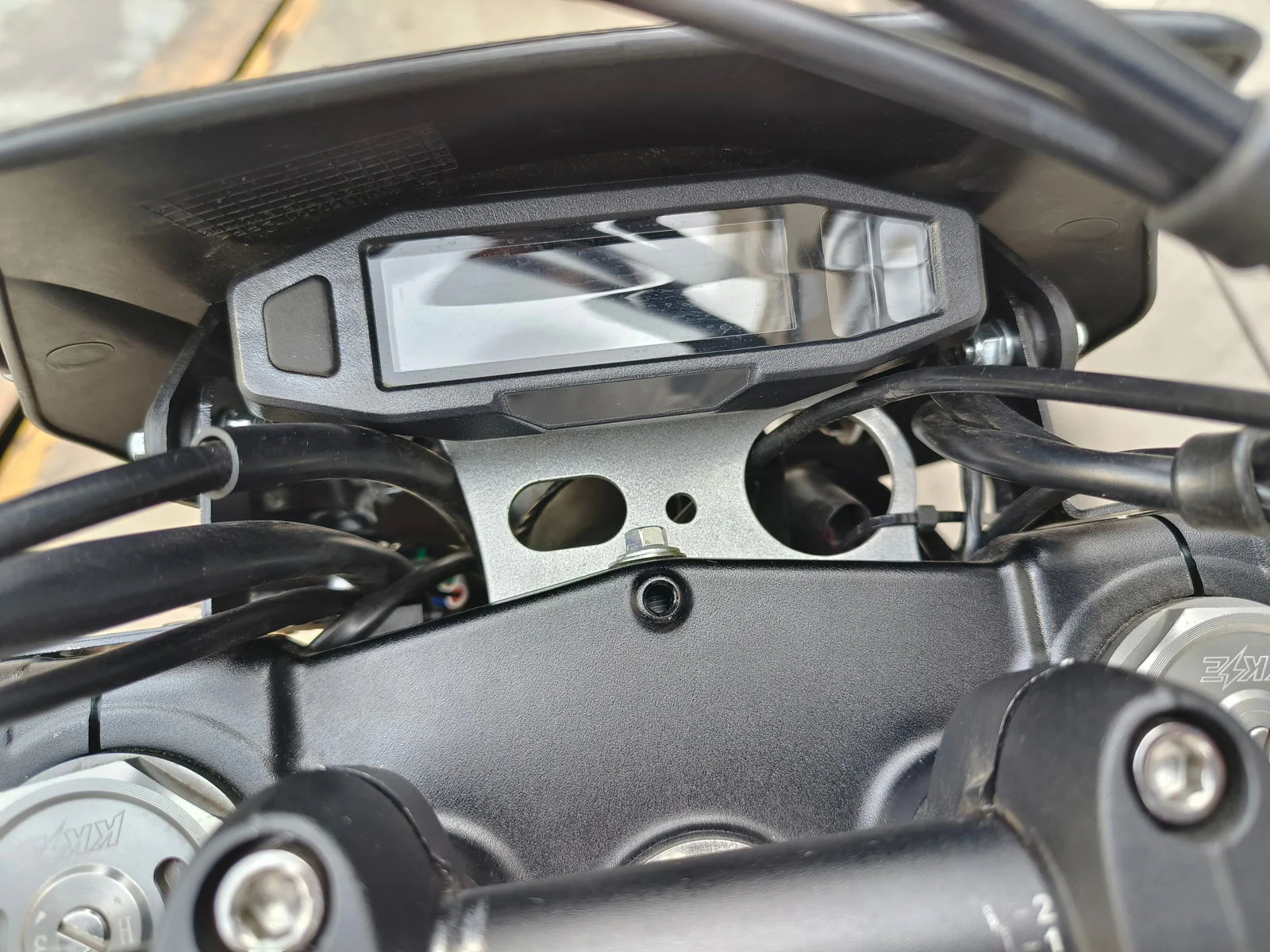

- Digital speedometer and odometer
- License plate holder
- Rear brake light
- LED Headlight
Specifications
Engine System

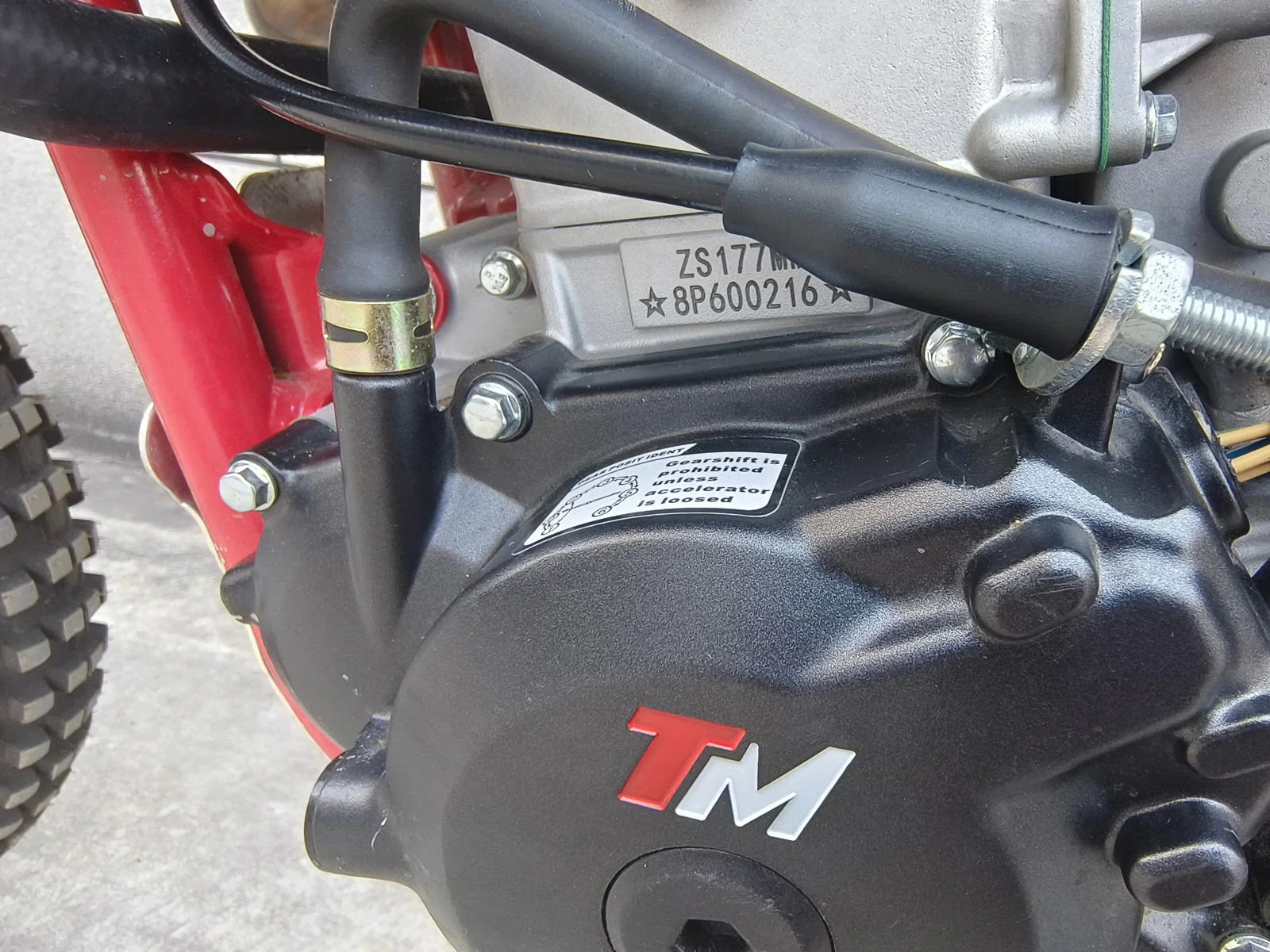

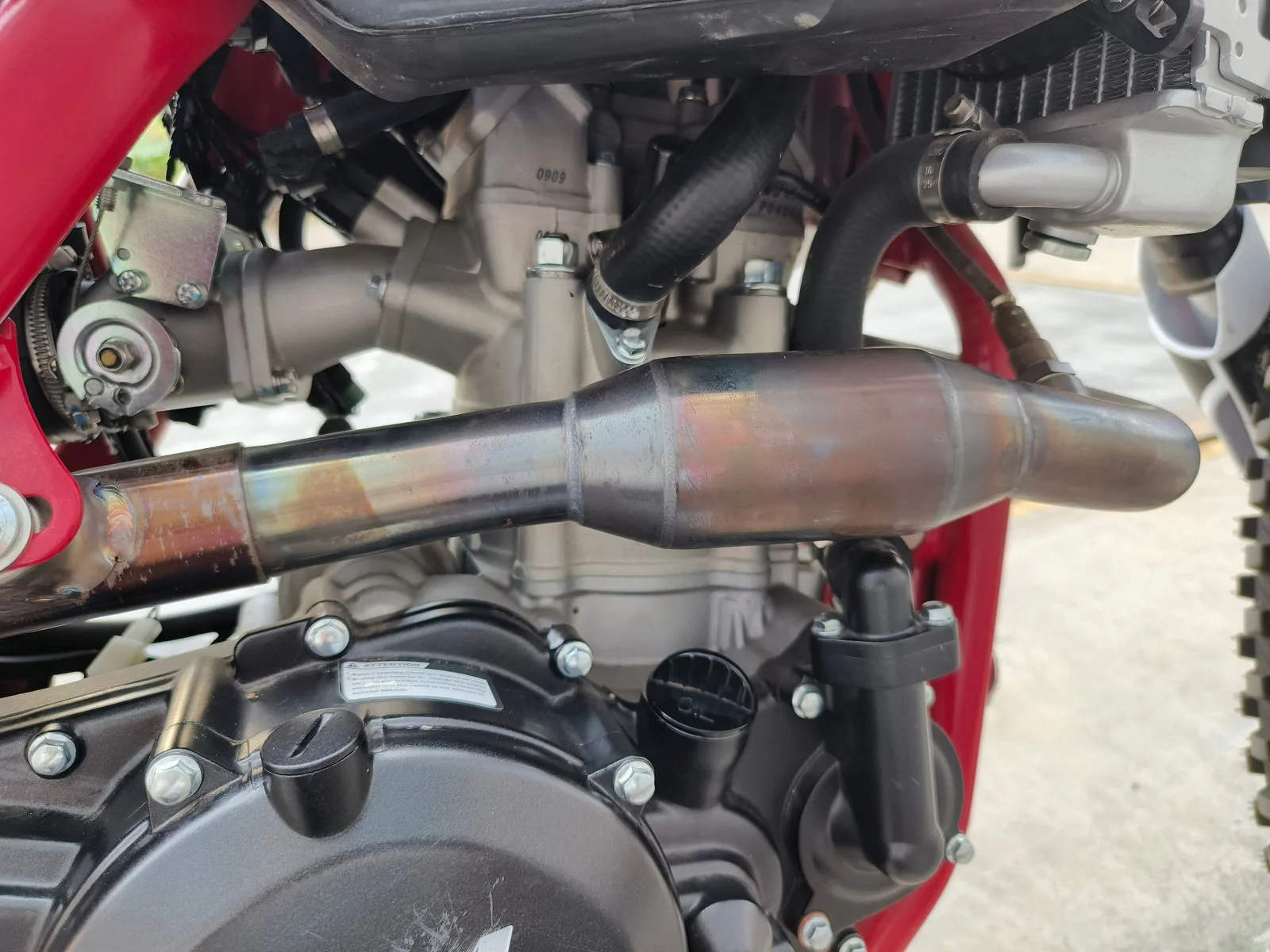

- Engine Type NC298, Single Cylinder EFI, 4- Stroke, 4-Valve, Liquid Cooled, SOHC, Balance Shaft
- Displacement 298cc
- Max Power 31 hp/ 9000rpm
- BorexStroke 82 x 53.6 mm
- Lubrication Pressure and Splash
- Shift Type Wet multi disc clutch, International Gear Pattern,6-Speed
- Start Type Electric & Kick Start
- Ignition
- Digital CDI
- Drive Train #520 Chain, FT: 13T/RR: 51T Sprocket
Size Data
- Front Fork Φ54*Φ60-940mm Inverted Hydraulic Dual Adjustable Forks, 300mm Travel

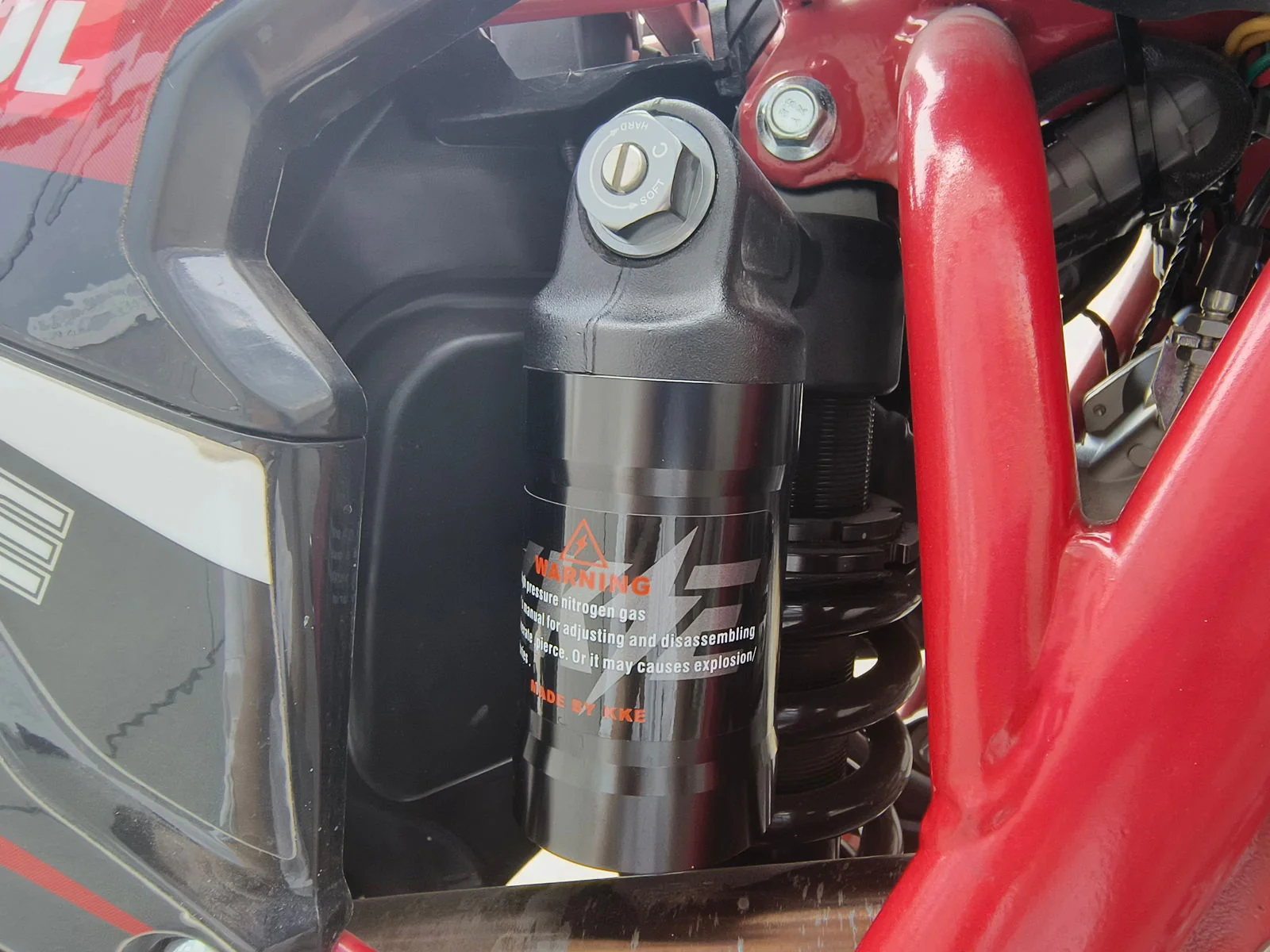

- Rear Shock 480mm Dual Adjustable Shock with Ballonet, 120mm Travel Front Wheel 7116 Aluminum Rim, Gravity Cast Hub, FT: 1.6 x 21
- Rear Wheel 7116 Aluminum Rim, Gravity Cast Hub, RR: 2.15 x 18
- Front Tire 80/100-21
- Rear Tire 110/100-18 Front Brake Dual Piston Caliper, 240mm Disc
- Rear Brake Single Piston Caliper, 240mm Disc
Frame/Suspension/Brake System
- Frame Central Tube High Strength Steel
- Swing-Arm: Forged Aluminum L=590mm
- Handle Bar: Tapered Aluminum #7075
- Overall Size 86.6"X33.9"49.2"
- Packing Size 67.5"X18"X34"
- Wheel Base 59"
- Seat Height 37"
- Ground Clearance 11.8"
- Fuel Capacity 1.72 Gal.
- N.W 234lbs G.W 326lb
